Gate Barrier

The Gate is the most popular original Chapter 8 blow moulded barrier. This superior blow moulded HDPE barrier offers superb quality at a low life cost.

Features

Incredible strength and durability.
Free standing with 360° swivel feet.
Free from screws and rivets.
Stacks in 50mm (2 inch) with location (40 per pallet).
Moulded in orange as standard, but can be coloured to suit.
Coloured feet if desired.
A moulded lamp connector.
Barrier to barrier connection is quick and easy to use on uneven ground.
Manufactured in High Density Polyethylene.
Company identification can be embossed.

Standards

Conforms to requirements of BSEN8442
Reflectivity requirements of BSEN12899-1
Chapter 8 - The Traffic Signs Manual
Safety at Street Works & Road Works
   – A Code of Practice.
Traffic Signs Regulations & General Directions

Transport

Pallet Quantity:
40
Pallet Size (mm):
2000 x 1200 x 2250
Pallet Spaces:
2
Pallet Weight (kg):
448

Spec Sheet:

For More Information Get in touch






    Customisation

    Foot
    Colour

    Wind Resistance

    All temporary traffic barriers must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2015 states the three classes as the following:

    Class A: 26.3 m/s (58 mph)
    Class B: 17.6 m/s (39 mph)
    Class C: 8.7 m/s (19 mph)

    The Gate Barrier system was tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the barrier can withstand. Below are the results and guides as to the recommended ballast weight for each Wind Class:

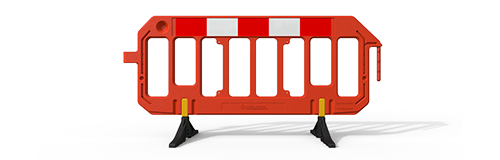

    Class C
    Withstood up to 19.4 mph.
    Recommended Ballast Weight: 0 kg

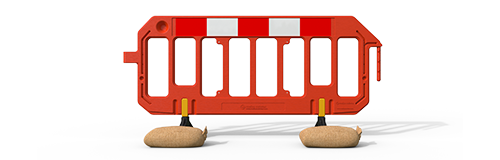

    Class B
    Withstood up to 42.3 mph.
    Recommended Ballast Weight: 30 kg

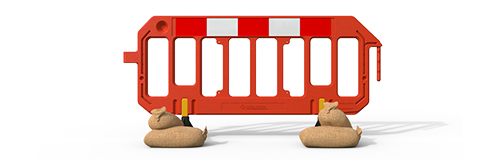

    Class A
    Withstood up to 59.1 mph.
    Recommended Ballast Weight: 90 kg

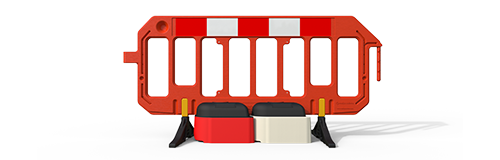

    Road Rock
    Withstood up to 42.3 mph.
    Recommended Ballast Weight: 0 kg

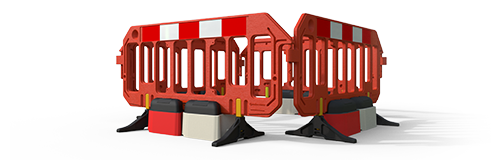

    Boxed with Road Rock
    Withstood up to 59.4 mph.
    Recommended Ballast Weight: 70 kg
    Images are for representation purposes only.
