Cellpave HD

Designed from the ground up, CellPave HD™ is incredibly strong and sets a new standard in permeable paving systems.

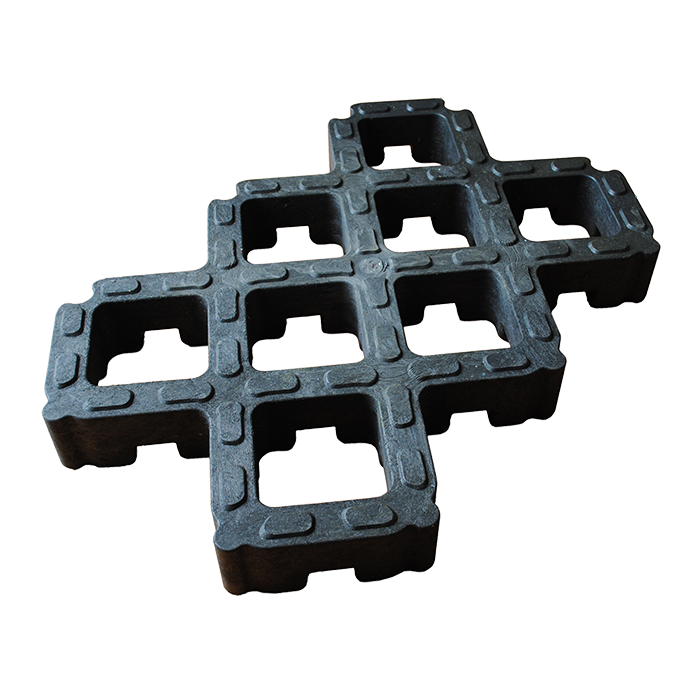

Proudly made in the UK, CellPave HD™ is made from 100% recycled UK sourced post-industrial polymers. Each paver is 600mm x 400mm x 75mm thickness (4.17 pavers per sq metre). Weighing 8kg each (33kg/m²) they fall well within the HSE manual handling limits and are quick and easy to install. The unique design also allows interlocking stacking on pallets, resulting in reduced shipping costs.

CellPave HD™ is the perfect system for use on large scale civil engineering compound areas or contractor’s storage areas as they can easily be uplifted at the end of the contract and re-used if required and is an economical alternative to Grasscrete.

Features

A key feature of CellPave HD is the unique channel cut-outs:

Enables 75% more product to be stacked on a single pallet when compared to TruckPave 80
Offset interlocked stacking ensures a very stable pallet for transportation
Prevents stagnation inside the cell when a non-porous substrate is used for installation
Aids inter-cell drainage and allows nutrients to pass between cells
Promotes a much healthier root system that allows lateral root growth
A double stacked, cross-bonded layout is also possible

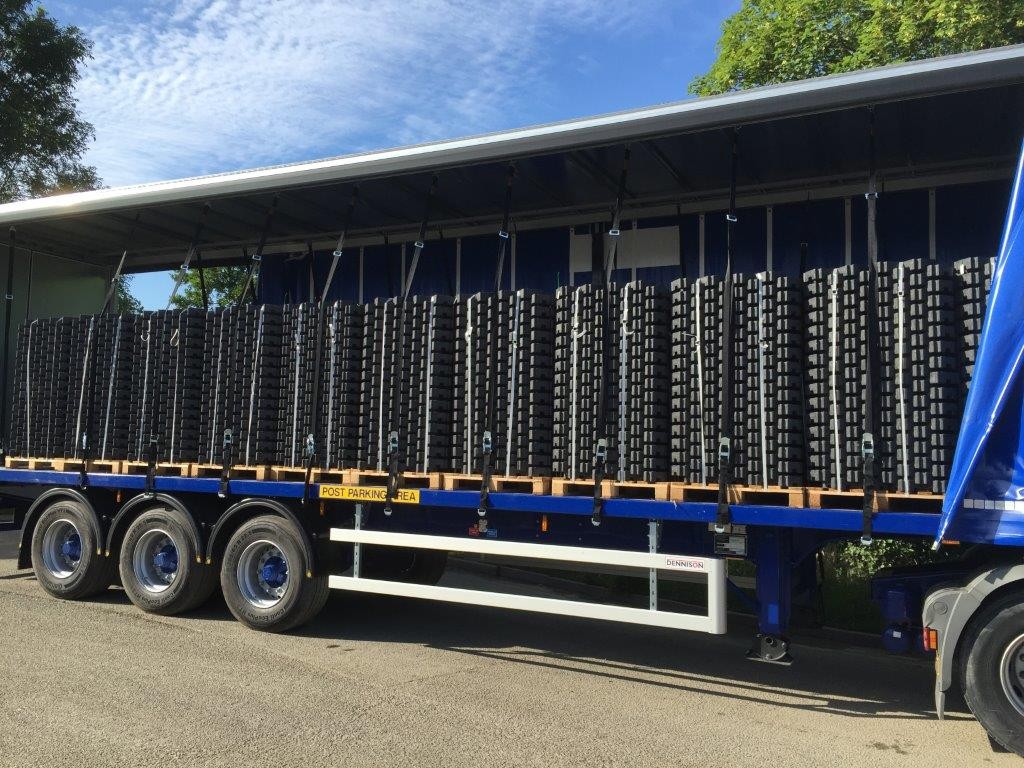

Transport

Pallet Quantity:
120
Pallet Size (mm):
1200 x 1000 x 1600
Pallet Spaces:
1
Pallet Weight (kg):
980

Spec Sheet:

Download Spec Sheet PDF Download PDF
Installation Guide for Grass PDF Download PDF
Installation Guide for Gravel PDF Download PDF
For More Information Get in touch







    Applications

    CellPave HD pavers have been designed to be installed with both gravel and grassed infills They are particularly suitable for incorporation into a SUDS compliant system and may even negate the need for water attenuation when installed on a suitable porous substrate.

    CellPave HD is the perfect system for use on large scale civil engineering compound areas or contractor’s storage areas as they can easily be uplifted at the end of the contract and re-used if required.

    CellPave HD can be installed for use with all forms of traffic including:

    HGV and coach parking areas
    Emergency vehicle and fire access routes
    Highway verge reinforcement (particularly where HGV overrun can occur)
    Fork lift loading areas

    Sustainable Urban Drainage System (SUDS)

    CellPave HD™ pavers have been designed to be installed with both gravel and grassed infills. They are particularly suitable for incorporation into a SUDS compliant system and may even negate the need for water attenuation when installed on a suitable porous substrate.

    Visit the Dedicated Cellpave HD Website.
