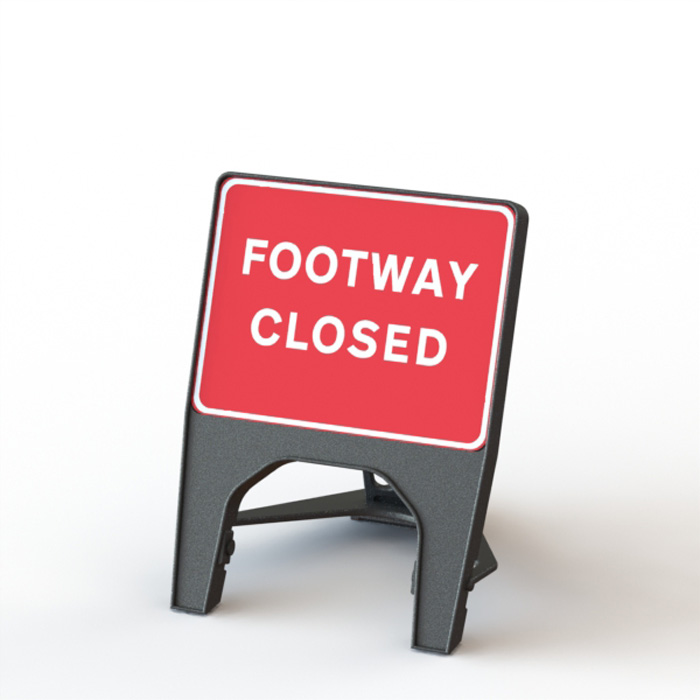

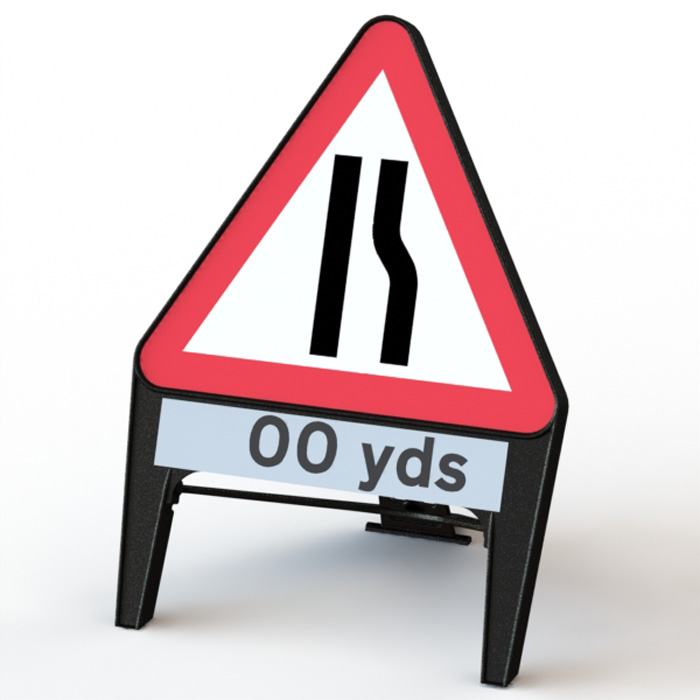

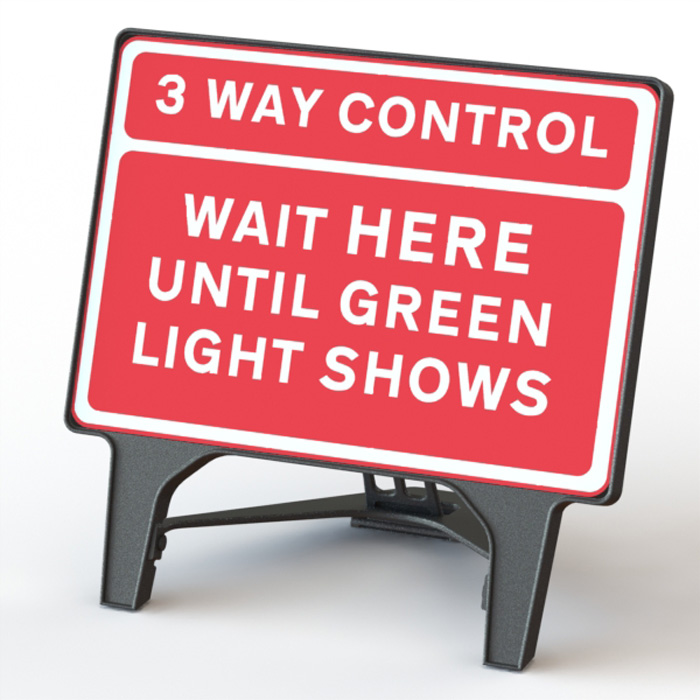

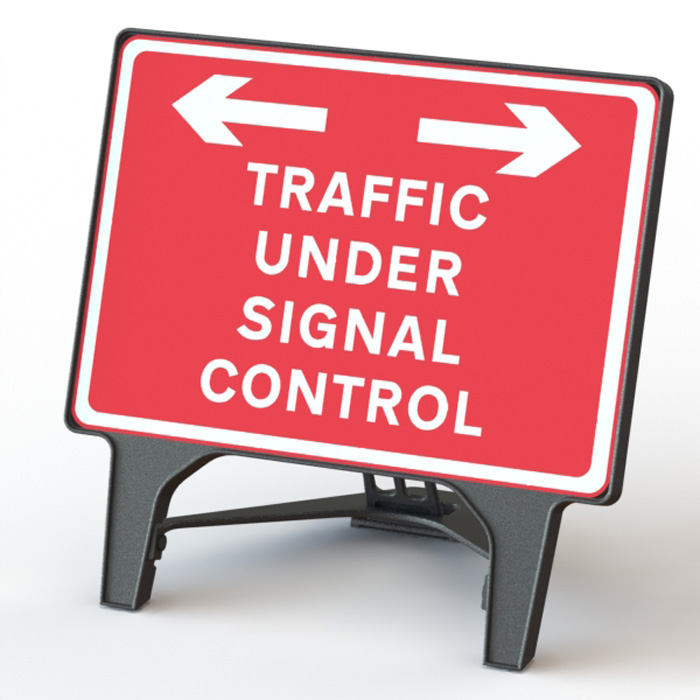

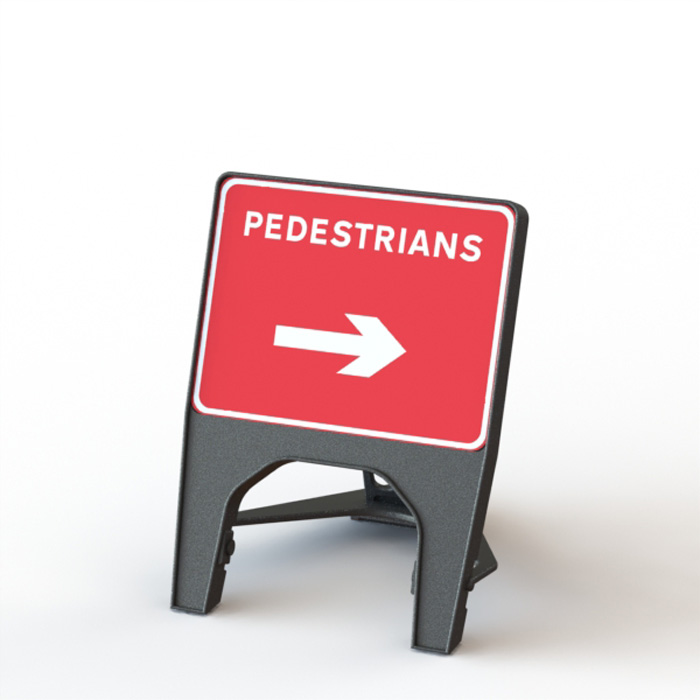

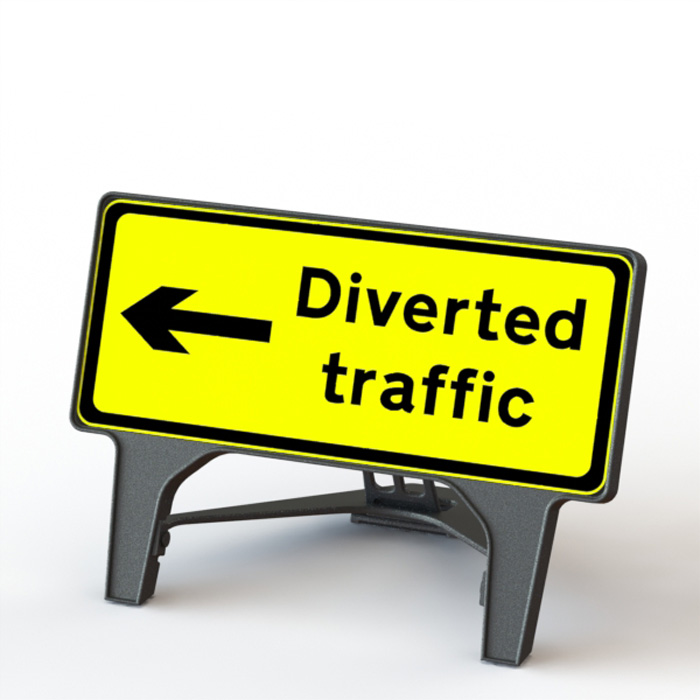

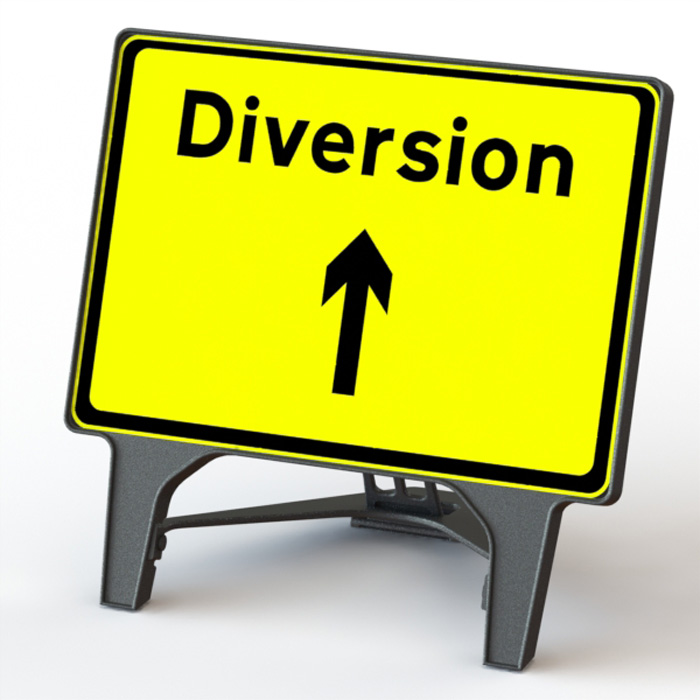

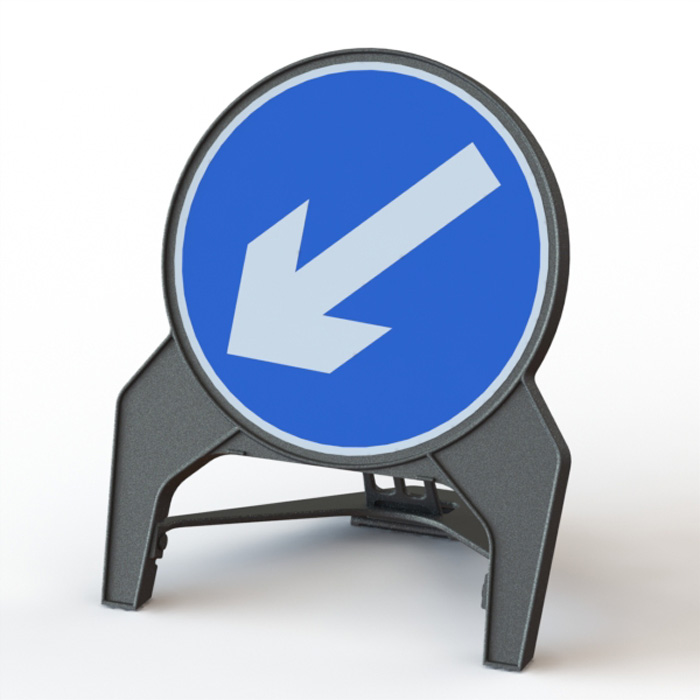

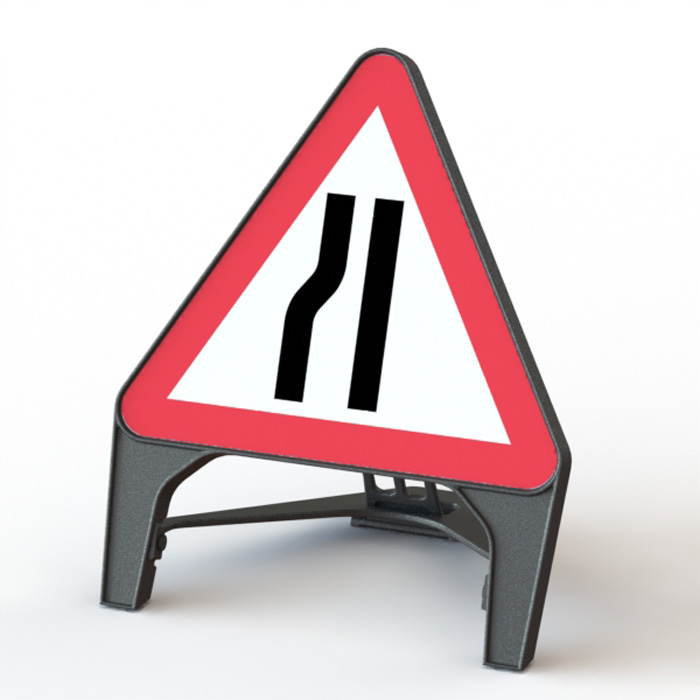

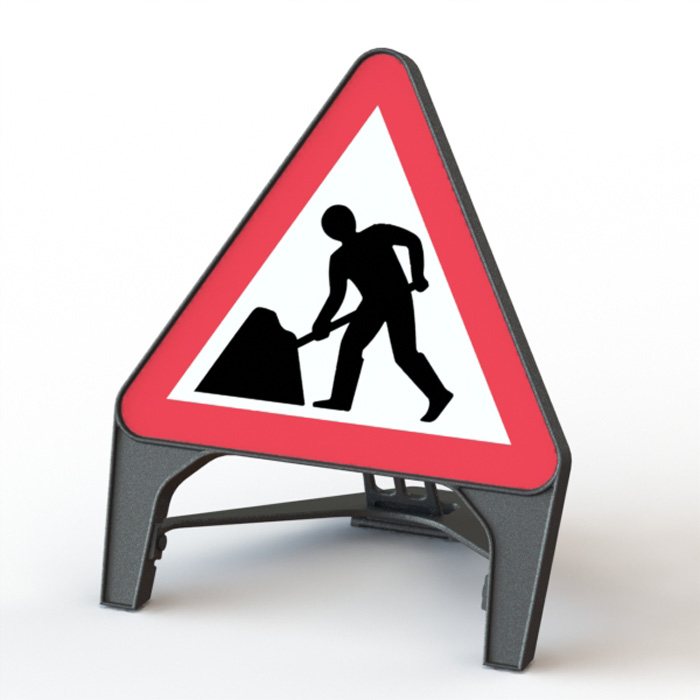

Q-Sign
The Q-Sign is the industry leader. The sign is extremely strong and durable. Manufactured from recycled Polypropylene, the sign has no metal parts. Although lightweight, the angled sign is designed to give a strong wind resistance.
Features
Long life due to strong and robust design.
Does not rust.
Manufactured from recycled Polypropylene in grey.
Excellent weight and footprint stability.
Non flammable.
Easy and safe to handle.
No sharp edges.
Priced competitively.
Stackable for storage and transport.

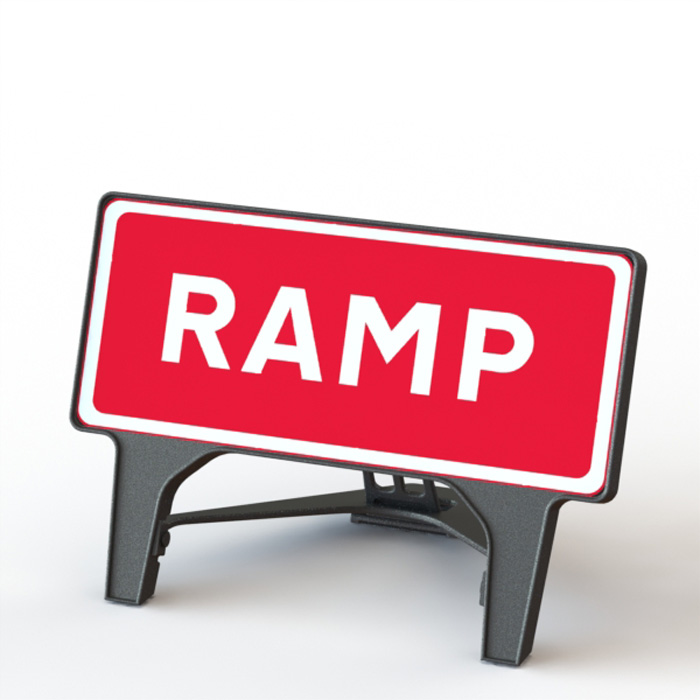

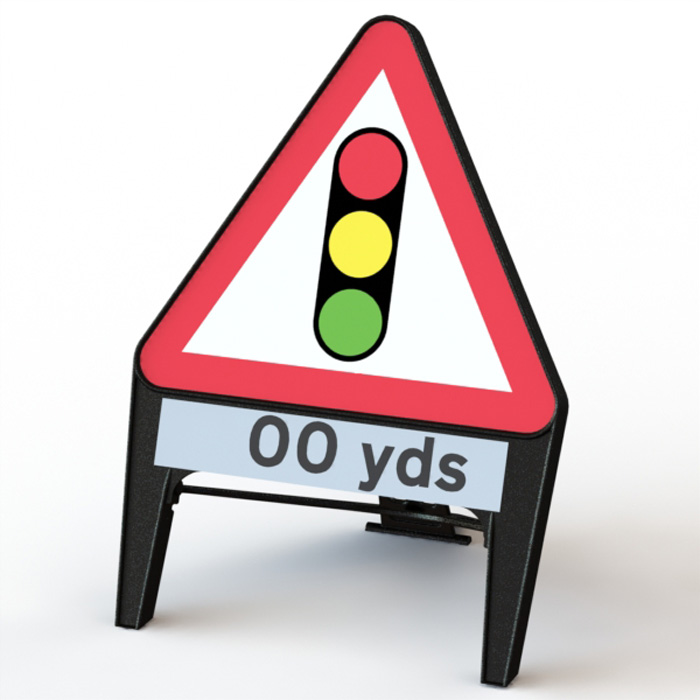

Supplimentary plate available.
Standards
Conforms to requirements of BS 8442:2015
Chapter 8 - The Traffic Signs Manual
Safety at Street Works & Road Works
– A Code of Practice.
– A Code of Practice.
Traffic Signs Regulations & General Directions
Spec Sheet:
For More Information Get in touch
Customisation
Supplementary
Save
When Save is pressed, the image is generated in the box above. Right-Click on this image and select "Save image as..." to save to your machine.
Wind Resistance
All temporary traffic signs must be able to withstand three different classes of wind speeds with the use of a ballast. The standard BS 8442:2015 states the three classes as the following:Class A: 26.3 m/s (58mph)
Class B: 17.6 m/s (39mph)
Class C: 8.7m/s (19mph)
The Q-Sign was tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the sign can withstand. Below are the results for the 600mm & 750mm Triangle and Circle Q-Sign. These results are a guide as to the recommended ballast weight for each Wind Class:
Class C
Withstood up to 26mph.
Recommended Ballast Weight: 0kg
Withstood up to 26mph.
Recommended Ballast Weight: 0kg
Class B
Withstood up to 42mph.
Recommended Ballast Weight: 10kg
Withstood up to 42mph.
Recommended Ballast Weight: 10kg
Class A
Withstood up to 59mph.
Recommended Ballast Weight: 30kg
Withstood up to 59mph.
Recommended Ballast Weight: 30kg
Images are for representation purposes only.
